Gestation crate(Pen) is designed for breeding gilts and boars, the spacing can be adjusted according to the size of the pig.The gestation crate is used in pig farm breeding and is one of the indispensable equipment in pig farm breeding.
We have two types of gestation crate bars, one is an integrated feeding gestation crate bar, and the other is a gestation crate bar with its own food trough. The difference between the two gestation crate bars is the difference in feeding.

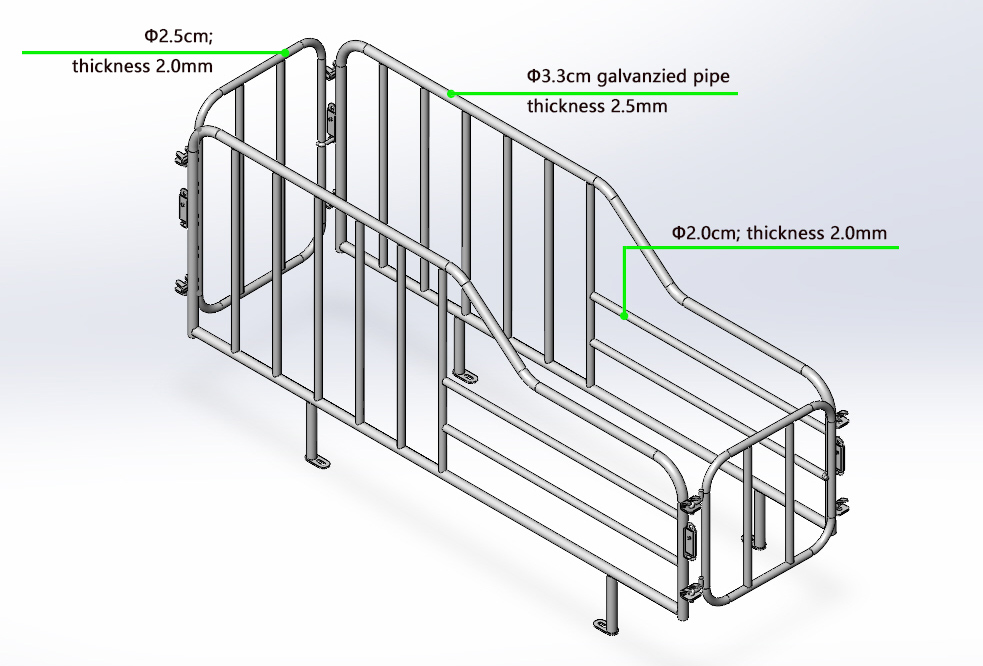

This product's gestation crate bar consists of a gestation crate bar side bar, The gestation crate pen is composed of partitions, a front door of the gestation crate pen, a back door of the gestation crate pen, a horizontal rail, a feeding pen or a trough, a middle foot, a side foot, screws, etc. gestation crate pen suitable for raising sows during pregnancy.

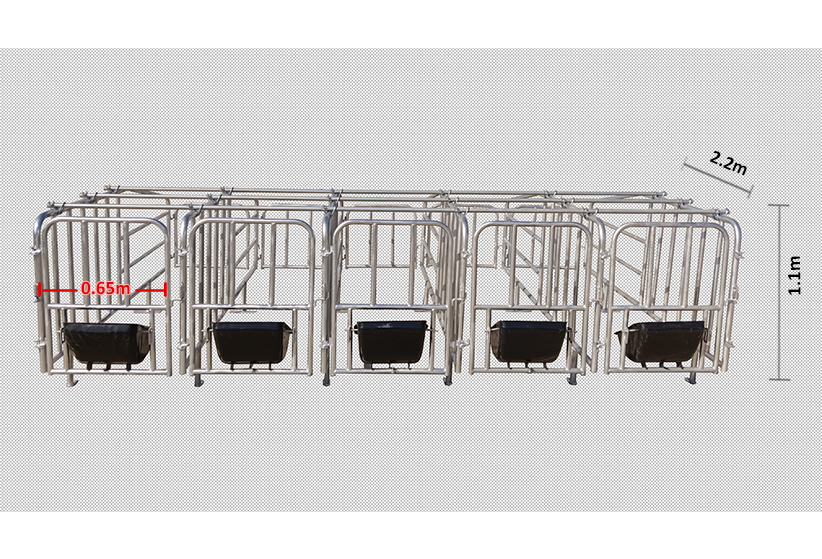

The general dimensions of the pen include
Length: 2.2m/2.3m/2.4m
Width: 0.6m/0.65m/0.7m
Height: 1.05m
Each stall can also be customized according to the location of the pig house and customer requirements. The gestation crate rail is made of galvanized steel, which is strong and durable. Long service life .
Each stall is equipped with an entrance and exit door, which is convenient for sows to enter and exit. It is also convenient for personnel to clean the farrowing bed and ensure the health of sows. Swing gates in both the front and rear make it easy to move sows in and out of the stall and non-removable pull-pins ensure pins won't get in the way or lost.
The door lock is easy to operate and the door frame opens and closes smoothly. Gestation stalls can increase the amount of pigs eating in a fixed space and are most suitable for intensive breeding. Fighting between sows is effectively avoided and the abortion rate is reduced.
| Pig Gestation Crate |
| Specfication | Length(mm) | 2200/2300/2400/Customized |
| Width(mm) | 600/650/700/Customized |
| Height(mm) | 1000/1050/1100/Customized |
| Material | Hot galvanizing steel pipe | Steel pipe + painting(optional) |
| Weight | 70kg |
|
| The panel assembly | Stainless steel |
|
| Fixed cross bar | Galvanized Steel Pipe |
|
| Cross pipe clamp | Galvanized Steel Pipe |
|
| Field fixings | Galvanized Steel Pipe |
|
| Sow trough | Iron | Steel/SS304(optional) |
| Fixed base | 10cm cast iron | optional |
| Floor system | BMC floor | optional |
1. It saves space and increases the number of pigs raised in a unit, making it suitable for collective pig farming.
2. It is convenient for feeding and management, easy for feeding and cleaning of feces, and can also better manage, clean and prevent epidemics of sows.
3. It is convenient to count sow data, and unified listing is less prone to errors.
4. Avoid sow fights, reduce sow stress, and reduce sow abortion rates.
5. It facilitates artificial insemination and pregnancy of sows and also solves the problems of sows' foot pain and boars crawling upside down.
6. Improve feed utilization, using gestation crate pens for sows can reduce the amount of exercise of sows, improve feed utilization, and reduce the waste of physical energy caused by excessive exercise of sows
7. Provide a good resting environment for sows.
8. Feeding separately is more hygienic and meets the feeding requirements of the sow.
1Q: What is the difference between door-type gestation and shared-trough type?
A:The front door model is more convenient for pigs to enter and exit, and it is convenient for each individual to manage and observe.
2Q:What do I need to pay attention to when customizing a gestation crate?
A:In addition to the crate size, you will also need to provide a arrangement.TIPS
3Q:May I change any part of the crate?
A: Of course you can, please check the technical data sheet and let me know what accessories you want to customize.
4Q: Can you OEM or ODM?
A: Sure, we certainly have solid creating group. The items can be created based on your demand.
5Q: What are your services?
A:We not only supply the equipment but also professionals to provide solutions and patient offering serivce after sales.
